smarter. EFFICIENT. AFFORDABLE.

Smart Energy Meter by Mediant

About Mediant Energy

Under Mediant Energy, we develop solutions focusing on operational intelligence and service enhancement in collaboration with Electricity DISCOMs and Utilities

From software tools like business Intelligence dashboards and deep data analytics to hardware like smart meters and asset health sensors, Mediant Energy aims to provide an cradle to cradle solutions under out innovative Continuum of AMI vision.

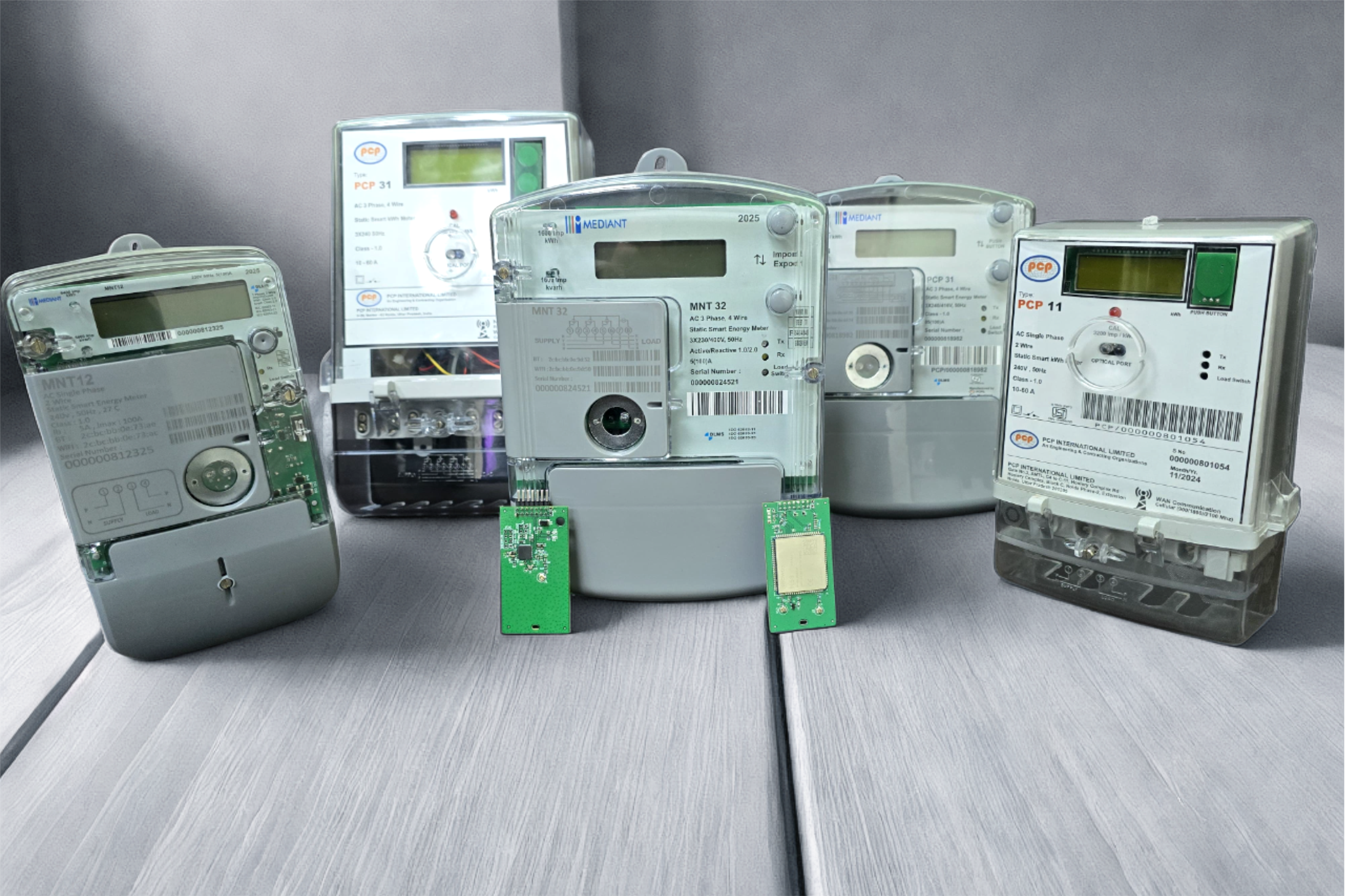

Smart Energy Meter

  • No need to worry about readings
  • Check Daily/Monthly Usage on your phone from anywhere
  • Why spend more, when you can track which equipment is causing more usage
  • Energy Efficient, uses low power to work
What is a
How to get a
Is it good have a
 Smart Energy Meter

Smart energy meter is an electronic device that measures the most accurate amount of electricity consumed by a residence, business or any electrically-powered device. A smart meter is a reliable source for the most accurate information of consumed energy that reduces the chance of error in the existing billing system to minimal.

COLLECT DATA

SMART METERS

SMART PLUGS

ADDITIONAL SENSORS

ASSET HEALTH MONITORING

ANALYZE DATA

DISCOM SIDE ANALYTICS

CUSTOMER SIDE ANALYTICS

ADVANCED BIG DATA ANALYTICS

TAKE ACTION

COMMON COMMAND
& CONTROL CENTRE

WORKFLOW MANAGEMENT (MWFM)

CUSTOMER CONNECT APP

15+

Advance features of Smart Energy Meter

Billing/Net Metering

Integration with existing system

12+

Core Features

Prepaid Ready
Remote Meter Reading
TOD/TOU
Billing/Net Metering
Alarm/Event Detection
Remote Firmware Upgrade
Remote Disconnect
Temper Detect
Billing Logs
Security
Integration with other Systems
Import of Legacy Data

SPECIFICATIONS

AC Single Phase

  • Connection Type : 2 wire (Single phase)
  • Standards : IS 16444, IS 15959(2)
  • Metrology Accuracy : Class 10(60)
  • Rated Current : For Single phase- Ib (Imax)A = 10(60)A , withstands 120% Imax.
  • Rated Voltage : 240 V (-40% to +20%) Single Phase
  • Starting Current : 0.2% Ib\
  • Frequency : 50 Hz +-5%
  • Load Contactor : Latching relays
  • Display : LCD
  • LED indicators : Load,  kWh, Communication LED (Rx/Tx)
  • Communication port/methods : GSM-GPRS, Optical Port
  • Communication protocol : DLMS COSEM



7+

Hardware Features

High Quality Relays, Touch Sensitive Push Button, Adequate Shielding Arrangements, Super Capacitors, Super Power Supply, 3G Module, LORA, WiFi, Bluetooth, NBIoT Connectivity and much more
